624

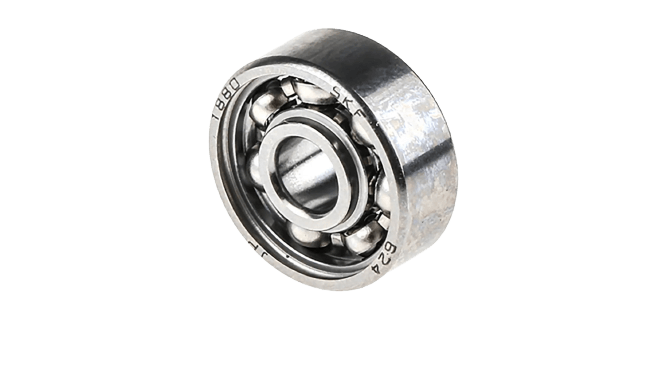

Deep groove ball bearing
Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Dimensions
|
Bore diameter |
4 mm |
|
Outside diameter |
13 mm |
|
Width |
5 mm |
Performance
|
Basic dynamic load rating |
0.936 kN |
|
Basic static load rating |
0.29 kN |
|
Reference speed |
110 000 r/min |
|
Limiting speed |
67 000 r/min |
Properties
|
Filling slots |
Without |
|
Number of rows |
1 |
|
Locating feature, bearing outer ring |
None |
|
Bore type |
Cylindrical |
|
Cage |
Sheet metal |
|
Matched arrangement |
No |
|
Radial internal clearance |
CN |
|
Material, bearing |
Bearing steel |
|
Coating |
Without |
|
Sealing |
Without |
|
Lubricant |
None |
|
Relubrication feature |
Without |
